WWII Tanks Vehicle Data Sheet

PzKpfw III Flammpanzer III
(also known as Flammpanzer III)

Germany

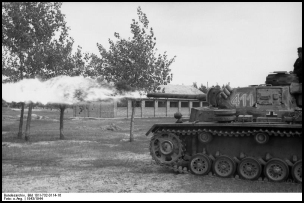

PzKpfw III Flammpanzer III

Armour Details

Turret

 Front 57mm@15(59.0mm)
 Side  30mm@25(33.0mm)
 Rear  30mm@12(31.0mm)
 Top  10mm@87(10.0mm)

Superstructure

 Front 70mm@9(71.0mm)
 Side  30mm@0(30.0mm)
 Rear  50mm@17(52.0mm)
 Top  18mm@83(18.0mm)

Hull

 Front 50mm@21(54.0mm)
 Side  30mm@0(30.0mm)
 Rear  50mm@9(51.0mm)
 Top  16mm@90(16.0mm)
Gun Mantlet 75 mm

Armour (x)mm @ (y) (Effective mm @ 0)

Effective Armour - Maximum 71 (mm) - Minimum 10 (mm)

Specifications

Manufacture Dates 1943 - 1945
Quantity Produced 100
Weight  23 (tonnes)
Crew 3
M.G's small 2
M.G's Large -
Length 5.52 (mtr)
Width 2.95 (mtr)
Height 2.5 (mtr)

Engine Details/Performance

Road Speed 25 (mph)
Cross Country Speed 11 (mph)
Range Road 96 (miles)
Range Cross Country - (miles)
Fuel Type Petrol
Fuel Capacity -
Horse Power 300
Power/Weight 13.04 (HP/tonne)

General Information


The PzKpfw III Flammpanzer IIIalso known as Flammpanzer III was a flame thrower , 100 of which were used by the germans between 1943 and 1945.

The vehicle was manned by a crew of 3 and was 2.95 metres wide, 5.52 metres long, 2.5 metres high and weighed 23 tonnes.

Powered by a 300hp petrol engine the PzKpfw III Flammpanzer III was capable of a road speed of 25mph and a cross country speed of 11mph. The PzKpfw III Flammpanzer III had a road range of 96 miles

Based on the pzkpfw iii chassis, the vehicle was armed with 2 light machine guns, a Model 40 Flame Projector with a muzzle velocity of 0m/sec which was capable of penetrating 0mm of armour at 800metres
Primary Armament

Model 40 Flame Projector
 Ammunition34 rounds carried
Range(metres) 100 200 400 800 1200 1600 2000 2400
No data available
