Auto Blinda 43 Armoured Car

Share with Facebook


The Auto Blinda 43 Armoured Car was designed in 1940, manufactured by Fiat-Ansaldo based on the existing 4 x 4 drive Armoured Car and was in use from 1941 to 1943.

Flag of World War 2 Italy

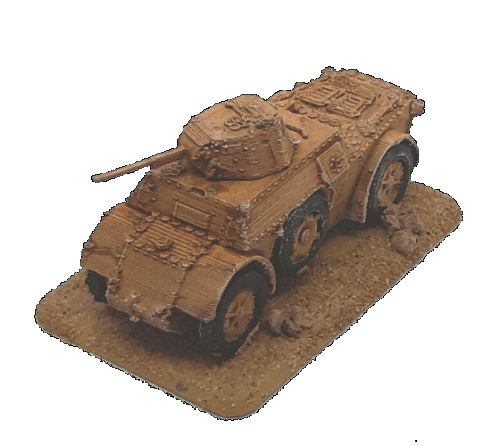

Photo of Auto Blinda 43 Armoured Car
Auto Blinda 43 Armoured Car scale illustration

General Details
Specifications
Operational Date(s)1941 - 1943
Quantity Produced0
Weight7.5 tonne
Crew4
M.G's small2
M.G's large(>10mm)n/a
Length5.26 mtr
Width1.95 mtr
Height2.46 mtr
Engine Details/Performance
Max Road Speed47 mph
Max Cross Country Speed23 mph
Range Road250 miles
Range Cross Country112 miles
Fuel TypePetrol
Fuel Capacityunknown
Horse Power120 hp
Power/Weight16 hp/tonne
General Information
The Auto Blinda 43 Armoured Car was designed in 1940, manufactured by Fiat-Ansaldo based on the existing 4 x 4 drive Armoured Car and was in use from 1941 to 1943.

The vehicle was powered by Fiat 'SPA I6 petrol' petrol powerplant producing 120 HP which could drive the vehicle on roads at up to 47 mph with a range of about 250 miles before refuelling. Its cross country performance was good providing a max speed of about 23 mph and a range of about 112 miles.

It was armed with 2 light machine guns which were Breda Modello 38s. Its main armament consisted of an Cannone contracarro da 47/32 M32 L/32 which could penetrate 63 mm of flat plate at 100 metres


Armour Details
Turret
Front19mm@15°(20mm)
Side9mm@15°(9mm)
Rear9mm@15°(9mm)
Top6mm@90°(6mm)
Superstructure
Front9mm@45°(13mm)
Side9mm@30°(10mm)
Rear9mm@30°(10mm)
Top6mm@80°(6mm)
Hull
Front9mm@45°(13mm)
Side9mm@30°(10mm)
Rear9mm@30°(10mm)
Top6mm@80°(6mm)
Armour (x)mm @ (y)° (Effective mm @ 0°)
Effective Armour - Maximum 20 mm - Minimum 6 mm



Weapon Details
Flag
Breda Modello 38
(Machine Gun)
Blank
History
The Breda model 38 was the Italian army standard vehicle mounted machine gun.
ManufacturerBreda Meccanica Bresciana
Manufactured1937 - 1943
Calibre7.92mm
LengthL/98
Rate of Fire200 rpm

Ammunition Details
Name/Id Calibre Weight MVelocity Explosive Content
7.92×57mm Mauser
(BALL Standard Small Arms)
7.92mm 0.012Kg 910M/Sec
Quoted Penetration 8mm @ 100mtr/30° ( ≈ 9mm/0°)
Range(Mtr)1002004008001200160020002400
Flight Time(Secs) 0.17
Penetration(mm@30°) 6
Penetration(mm@0°) 7
Hit Probability(%) 98


Weapon Details
Flag
Cannone contracarro da 47/32 M32 L/32
(Anti Tank Gun)
Blank
photo of Cannone contracarro da 47/32 M32 L/32 from Wikipedia
History
This was the Austrian 4.7cm Bohler L/39 manufactured under licence, and was used in all theatres till Italy surrendered.
Manufactured1935 - 1943
Calibre47mm
LengthL/32
Number of Rounds 63


Ammunition Details
Name/Id Calibre Weight MVelocity Explosive Content
47 x 195/227 mm R L/32
(AP Armor Piercing)
47mm 1.6Kg 630M/Sec
Quoted Penetration 58mm @ 100mtr/30° ( ≈ 66mm/0°)
Range(Mtr)1002004008001200160020002400
Flight Time(Secs) 0.16 0.33 0.69 1.53 2.56 3.86 5.53 7.79
Penetration(mm@30°) 54 50 44 37 30 24 19 14
Penetration(mm@0°) 63 58 51 43 35 28 22 17
Hit Probability(%) 98 98 98 85 44 22 3 2



Bohler HE
(HE High Explosive)
47mm 2.37Kg 250M/Sec ≈0.356Kg explosive
Maximum Range not shown as gun elevation is limited
Range(Mtr)1002004008001200160020002400
Flight Time(Secs) 0.41 0.84 1.75 3.86 6.45 9.72 13.94 19.68
Direct Fire
Range(Mtr)1002004008001200160020002400
Flight Time(Secs) 0.41 0.84 1.75 3.86 6.45 9.72 13.94 19.68
Hit Probability(%) 98 98 77 22 3 1 0 0
Blast/Fragmentation Effects
Burst radius Infantry in open 99% kill3 mtr Burst radius Infantry in open 66% kill6 mtr
Burst radius Infantry in open 33% kill15 mtr  Armour Penetration inc roof at 1 mtr1 mm
An explosion within 3 mtr of infantry in the open will cause 99% casualties - lethal.
An explosion within 6 mtr of infantry in the open will cause > 66% casualties and could damage some AFV's.
An explosion within 15 mtr of infantry in the open will cause 33% casualties.
The blast effect of this shell exploding within 1 mtr of an armoured vehicle will penetrate 1 mm of the tank armour including the roof.



Bohler HEAT
(HEAT High Explosive Anti-Tank)
47mm 2.37Kg 250M/Sec
Quoted Penetration 55mm @ 0mtr/0°
Range(Mtr)1002004008001200160020002400
Flight Time(Secs) 0.41 0.84 1.75 3.86 6.45 9.72
Penetration(mm@30°) 55 55 55 55 55 55
Penetration(mm@0°) 55 55 55 55 55 55
Hit Probability(%) 98 98 77 22 3 1

Hit probability is based on a static 2 x 2.4 metre panel at 0 degrees(vertical) at the range specified.
