Britain
Inf Tank Mk II (Matilda IV)

Share with Facebook


The Inf Tank Mk II was designed in 1937 based on the existing fully tracked Matilda and was in use from 1940 to 1943.

Flag of World War 2 Britain

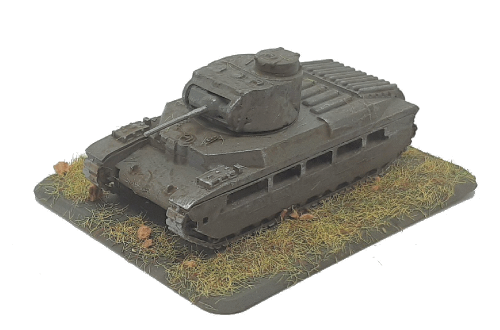

Photo of Inf Tank Mk II (Matilda  IV)
Inf Tank Mk II(Matilda  IV) scale illustration

General Details
Specifications
Operational Date(s)1940 - 1943
Quantity Produced0
Weight26.5 tonne
Crew4
M.G's small1
M.G's large(>10mm)n/a
Length5.69 mtr
Width2.62 mtr
Height2.46 mtr
Engine Details/Performance
Max Road Speed15 mph
Max Cross Country Speed8 mph
Range Road101 miles
Range Cross Country62 miles
Fuel TypeDiesel
Fuel Capacity56 gal
Horse Power190 hp
Power/Weight7 hp/tonne
General Information
The Inf Tank Mk II was designed in 1937 based on the existing fully tracked Matilda and was in use from 1940 to 1943.

The vehicle was powered by Leyland 'Diesel 190HP' diesel powerplant producing 190 HP which could drive the vehicle on roads at up to 15 mph with a range of about 101 miles before refuelling. Its cross country performance was adequate providing a max speed of about 8 mph and a range of about 62 miles.

It was armed with 1 light machine gun. Its main armament consisted of an Ordnance Q.F. 2pdr which could penetrate 59 mm of flat plate at 400 metres

The Matilda IV was a complete new design to replace the Matilda I Infantry tank, which had been superceeded by advances in tank designs.

This version had a few minor improvements over the Matilda III.

Armour Details
Turret
Front75mm@11°(76mm)
Side75mm@(75mm)
Rear75mm@(75mm)
Top20mm@90°(20mm)
Superstructure
Front48mm@67°(123mm)
Side70mm@30°(81mm)
Rear55mm@25°(61mm)
Top20mm@90°(20mm)
Hull
Front78mm@10°(79mm)
Side65mm@(65mm)
Rear55mm@25°(61mm)
Top20mm@90°(20mm)
Armour (x)mm @ (y)° (Effective mm @ 0°)
Effective Armour - Maximum 123 mm - Minimum 20 mm



Weapon Details
Flag
Ordnance Q.F. 2pdr
(Anti Tank Gun)
Blank
photo of Ordnance Q.F. 2pdr from Wikipedia
History
Used both as an Anti Tank gun and as a Tank gun the 2pdr was first used in Belgium in 1939. The majority of the British guns were captured by the Germans at Dunkirk. However the 2pdr manufacture was continued but was slowly replaced by the 6pdr from 1942.
Manufactured1936 - 1944
Calibre40mm
LengthL/50
Rate of Fire22 rpm

Ammunition Details
Name/Id Calibre Weight MVelocity Explosive Content
AP/T Mk I
(AP Armor Piercing)
40mm 1.08Kg 792M/Sec
Quoted Penetration 53mm@455m
Range(Mtr)1002004008001200160020002400
Flight Time(Secs) 0.13 0.27 0.56 1.26 2.17 3.37 5.06 7.58
Penetration(mm@30°) 64 58 51 41 33 25 19 13
Penetration(mm@0°) 74 67 59 48 39 30 22 16
Hit Probability(%) 98 98 98 93 60 25 6 2



HE/T Mk II after 1942
(HE High Explosive)
40mm 0.86Kg 792M/Sec 0.085Kg explosive
Maximum Range not shown as gun elevation is limited
Range(Mtr)1002004008001200160020002400
Flight Time(Secs) 0.13 0.27 0.56 1.26 2.17 3.37 5.06 7.59
Direct Fire
Range(Mtr)1002004008001200160020002400
Flight Time(Secs) 0.13 0.27 0.56 1.26 2.17 3.37 5.06 7.59
Hit Probability(%) 98 98 98 93 60 25 6 2
Blast/Fragmentation Effects
Burst radius Infantry in open 99% kill1 mtr Burst radius Infantry in open 66% kill3 mtr
Burst radius Infantry in open 33% kill9 mtr  Armour Penetration inc roof at 1 mtr0 mm
An explosion within 1 mtr of infantry in the open will cause 99% casualties - lethal.
An explosion within 3 mtr of infantry in the open will cause > 66% casualties and could damage some AFV's.
An explosion within 9 mtr of infantry in the open will cause 33% casualties.
The blast effect of this shell exploding within 1 mtr of an armoured vehicle will not cause any significant armour damage.

Hit probability is based on a static 2 x 2.4 metre panel at 0 degrees(vertical) at the range specified.
